Rugged Tablet SR-820
Po szczegóły zadzwoń pod numer
801 000 167

title=
Specyfikacja
Opis produktuTablet Ruggedbook model SR-820
Gwarancja- 24 miesiące
Opis



Rugged Tablet PC-SR820





Intel® Atom Z530P 1.6GHz Processor, 512KB L2 Cache
Intel® US15WP system controller hub (SCH)
Intel® graphics media accelerator 500
8.9" TFT LCD (WSVGA LED backlight), touch screen/Sunlight readable (optional)
1GB RAM (Upgradable to 2GB max.)
1.8” 60 GB PATA HDD/ 16GB CF card/ 16GB SSD
WLAN 802.11 b/g/n
Bluetooth 2.1 class ll+ EDR
WWAN module with GPS (HSUPA/E-GPRS/GPS) (optional)
2.0 Mega-Pixels camera (optional :5.0 Mega-Pixels camera)
1D Barcode scanner (optional:1D/2D barcode scanner)
13.56 MHz RFID reader supports ISO/IEC 15693 &
ISO 14443 A/B standard (optional)
Fully rugged design, meet IP65 & MIL-STD-810G
Mg-Al alloy Housing & Fan-less design
Free drop over 4 feet still survive





Features:

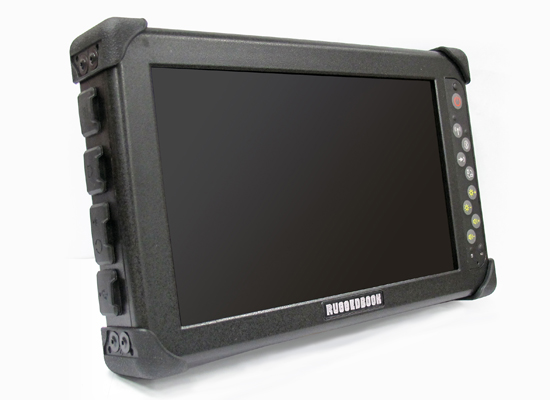

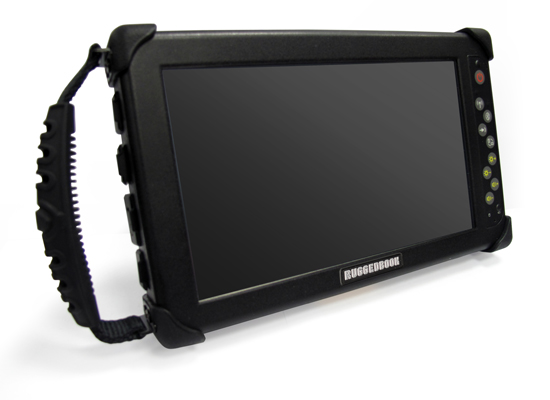

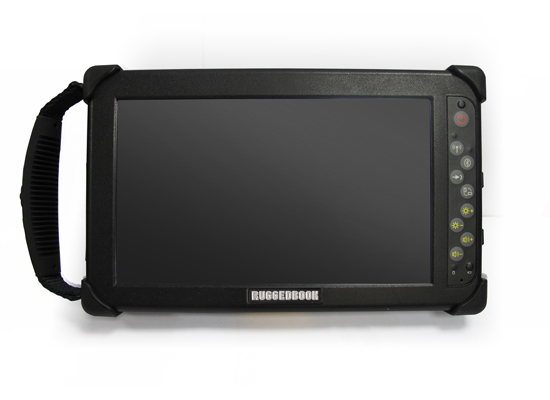

The RUGGEDBOOK SR820 is a compact ruggedized tablet computer equipped with an 8.9-inch sunlight-readable LCD display. It is powered by an energy-efficient 1.6GHz Intel Atom Z530P processor and its complementing Intel US15WP SCH chipset. The device, which passed numerous MIL-STD-810G ruggedness tests, carries an IP65 ingress protection rating, can handle 4-foot drops, and is additionally protected by sturdy, replaceable rubber bumpers.

Features of the SR820 include state-of-the-art sunlight-readable and LED display backlight technology, up to 2GB DDR II SDRAM, an 1.8-inch 60GB hard disk or optional SSD (solid state disk) storage, as well as an optional integrated 2 or 5 megapixel camera, and optional bar code scanner and RFID reader. Communications capabilities include Gigabit Ethernet, 802.11/b/g/n WiFi, Bluetooth 2.1 + EDR, and an optional 3.75G WWAN module.

Providing superior functionality and performance, the SR820 also provides exceptional ease-of-use and ergonomics, satisfying users” demands in numerous applications, including hospitality, transportation, measuring, field service, logistics and telecommunication, etc.




Specifications:
Processor Intel® Atom Z530P 1.6GHz Processor, 512KB L2 Cache
System Chipset Intel® US15WP system controller hub (SCH)
Graphic Display Intel® graphics media accelerator 500
LCD Panel 8.9" TFT LCD (WSVGA LED backlight) with 4 wires touch panel
Optional: Sunlight readable
Memory 1GB RAM (upgradable to 2GB max.)
Storage 1.8” 60GB PATA HDD/ 16GB CF card/ 16GB SSD (optional)
Audio 1x Internal Speaker & 1x Internal Microphone

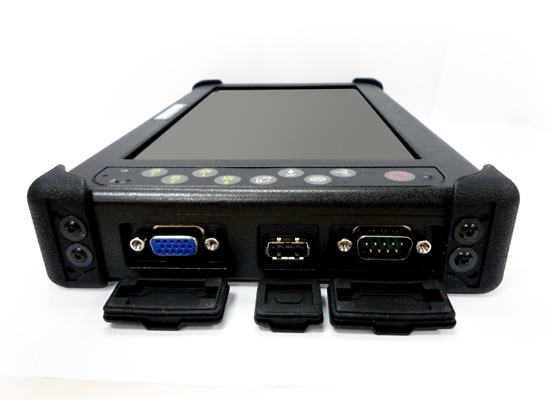

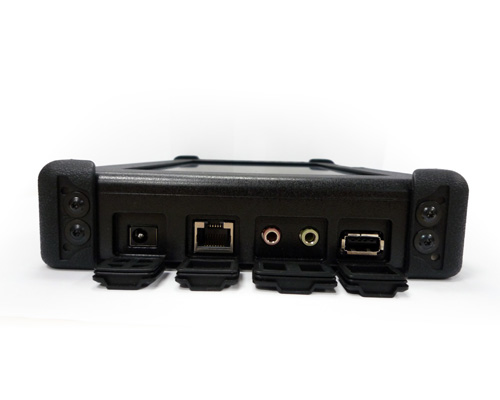

I/O Port 2x USB 2.0; 1x VGA; 1x RS232; 1x RJ-45; 1x Earphone; 1x MIC;
1x DC-in
Expansion slot 1x SD/MMC card slot, 1x SIM card slot
Camera 1x 2.0 Mega-Pixels camera (optional :5.0 Mega-Pixels camera)
Barcode scanner 1D barcode scanner (optional:1D/2D barcode scanner)
RFID 13.56 MHz RFID reader supports ISO/IEC 15693 & ISO 14443 A/B standard
Connectivity/
communication		 10/100/1000 Ethernet LAN
802.11 b/g/n WLAN
Bluetooth 2.1 class II+ EDR
WWAN module with GPS (HSUPA/E-GPRS/GPS) (optional)
Power System Adapter Input AC: 100V-240V,50Hz-60Hz; output: DC 12V/36W
Battery 4 cells 2S2P 5200 mAh Li-Ion battery. 6 max. hours run-down life (SSD Model)
Button Key Power button ; Screen Rotation,  button (Ctrl+ Alt+Del ); WLAN;
Bluetooth Switch; Volume up; Volume down; Brightness up;
Brightness down
Operating
System 		 Windows XP Tablet PC edition
Accessory 1 x Service DVD, 1x power cord, 1x Stylus, 1x adapter

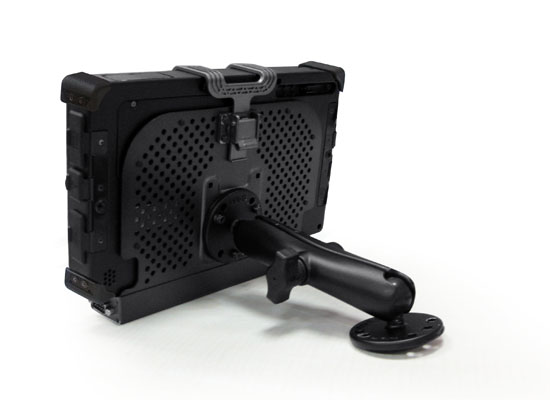

Docking Station 3 x USB, 1 x RS232, 1 x RJ-45, 1 x DC-in
Operating
Temperature		 Operating:0? to + 60?;  Storage: -40? to +85?
Cold boot (battery): 0? @75o/o charge
Dimension &
Weight		 252x153x33mm, >1.2 kg
Reliability IP65, MIL-STD-810G
EMI/ Safety FCC, CE, cUL





Porty:














  		•
